Emove EM306 Finding Level - Automatic Caravan Mover with Corner Steadies
Complement your Emove EM306 Finding Level - Automatic Caravan Mover with Corner Steadies with
Emove Finding Level - Automatic mover and self levelling system - The complete kit consists of electric engage EMOVE caravan mover with all season covers. 4 Heavy duty Finding Level electric corner steadies. Finding Level control brain and handset.
IMPORTANT The Emove Finding Level system EM306 is suitable for retrofitting on an AL-KO chassis (for dimensions and
specifications, see Fig. 1 image above) This requires checking as the levellers do not fit all ALKO chassis.
Caravan Mover for Single Axle Caravans Only
From unhitch to a level pitch in only 2 minutes
Stage 1: Handset tells you which side is low and place the ramp accordingly.
Stage 2: Press the Finding Level (FL) button, the caravan will reverse up the ramp stopping when the caravan is level (left to right). The electric corner steadies finish the job levelling the caravan (front to back). Your caravan is now level.
Finding Level Corner Steadies:
- Average current consumption - 6 Amps
- Maximum current consumption - 23 Amps
- Weight approx.- original steadies - 14 kg
- Maximum caravan weight - 2000 kg
Finding Level Caravan Mover:
- Average current consumption - 20 Amps
- Maximum current consumption - 100 Amps
- SWL on flat tarmac - 2250 kg
- Single axle - 1600kg 18%
- 2 motors included
IMPORTANT: Do not use a rechargeable PP3 battery when using the handset. It is only compatible with NON-RECHARGEABLE ONLY

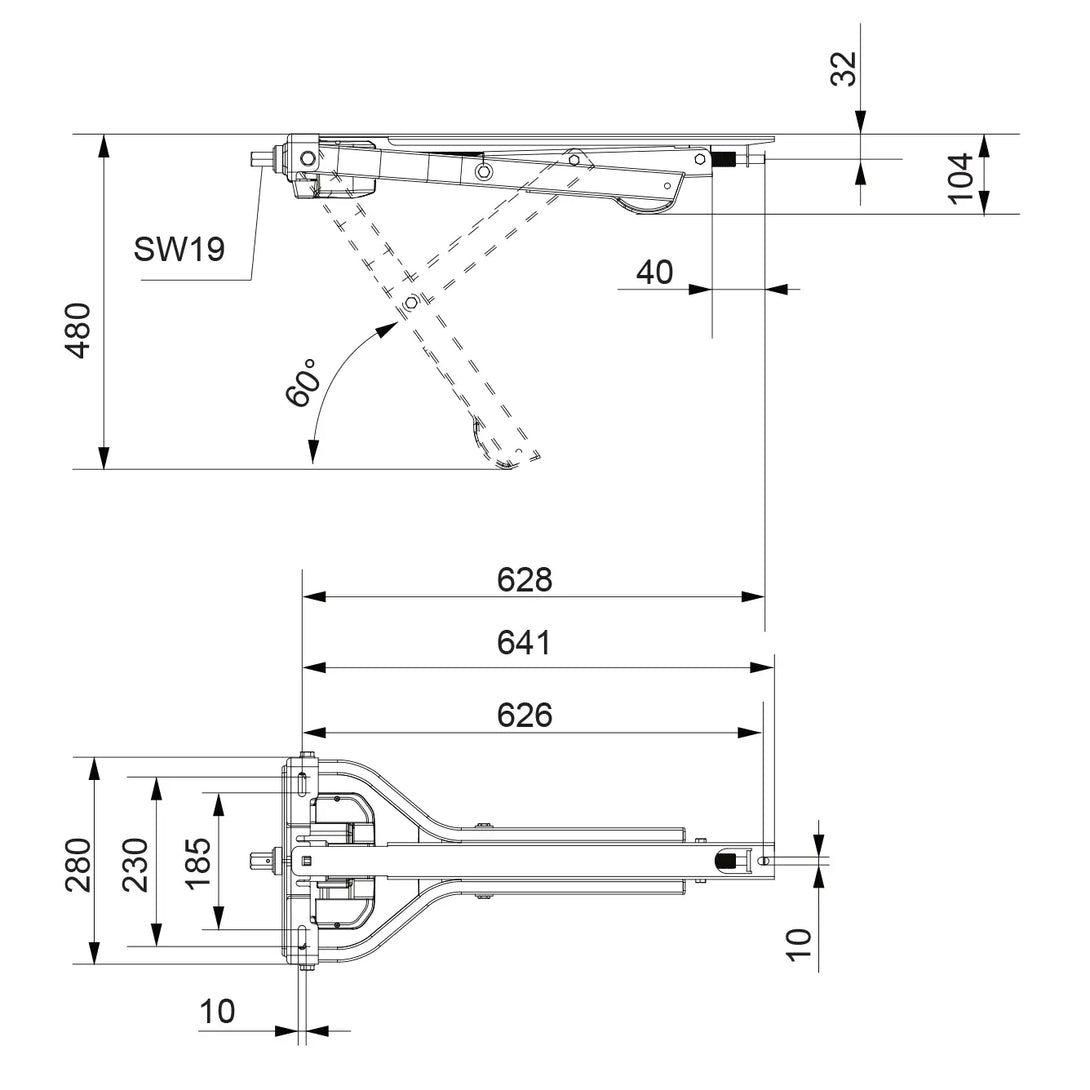

Please see images for clearances required for the caravan mover.
