Fiamma F45s / F45L / F70 Privacy Room
In fifteen minutes you double the space available for your family
With a Privacy Room you transform your awning into a comfortable living area and make more space available for the entire family. The widened windows, rounded forms and the insertion of grey tones make the product more elegant and modern. The quality materials and the extremely resistant structure guarantee the functionality and sturdiness of the product already appreciated by campers.
Classic enclosure suitable for all seasons, the best solution for medium and long term stays.
Features
- quick installation in 15 minutes with Fast Clip poles
- ideal for all seasons
- composed of one front panel and two side panels
- all Crystal full light windows that can be rolled up, with mosquito net and curtains as standard
- 3 heights are available: Van [S], Medium [M], Large [L]
- standard pegs for safe anchoring
- complete with Mega Bag to store Privacy Room and poles

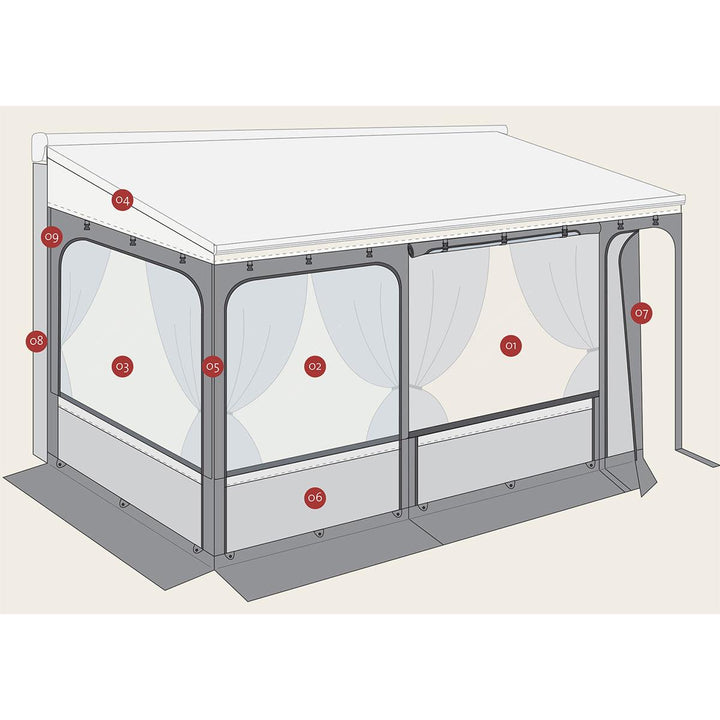

[1] Panels: with roll-up Crystal full light window, fitted with mosquito net and curtains as standard
[2] Additional front panels: with fixed Crystal full light window and curtains as standard equipment
[3] Windows: equipped with a thick velcro strip for a safe closing of the window
[4] Fast Clip: for quick and safe hooking to the awning fabric with internal lever hooks
[5] Zippers: join the front and side panels
[6] Fabric: waterproof and UV-resistant, rot-proof and washable vinyl
[7] Door: it can be positioned on the left side of the front panel and easily moved to the right side of the same
[8] Protective sponge: positioned vertically at the rear of the side panels
[9] Vertical Rafter: telescopic aluminium as standard (2 pieces) to lock the protective sponge
COMES COMPLETE WITH;
- 1x front panel* 300cm Module with door and window with mosquito net
- 2x side panels with windows with mosquito net
- 1x curtain kit for all the windows of the enclosure
- 1x Fast Clip installation kit (2+2 aluminium tension poles)
- 1x Kit elastic ropes with quick hooks
- 1x Mega Bag, dim. 140x27x40cm.

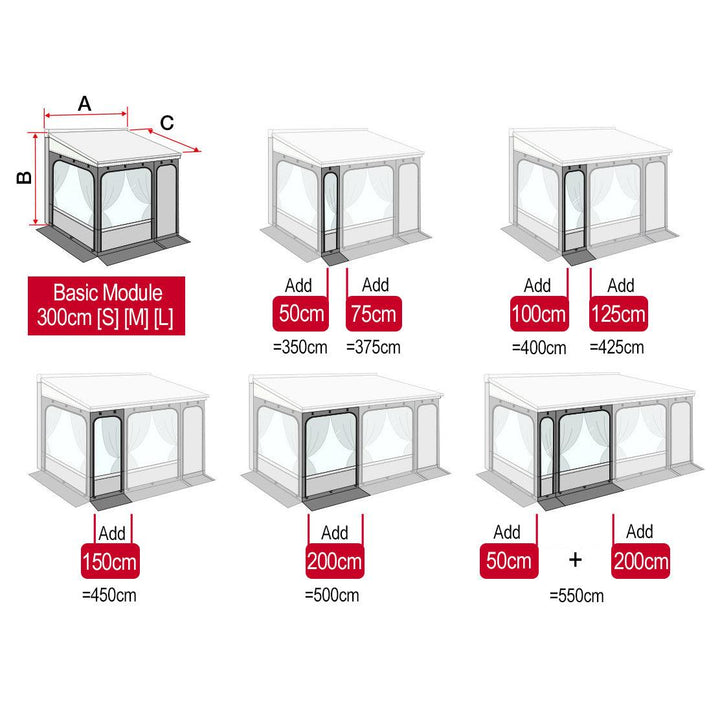

* The Privacy Room is produced in a standard length of 300cm. Additional zip panels of 50, 75, 100, 125, 150, 200cm length are available to enlarge the front panel so as to fit awnings up to 500cm in length.
Example: 400cm = 1x Standard 300cm Module PLUS 1x 100cm front Zip Panel
All sides come with window and mosquito net

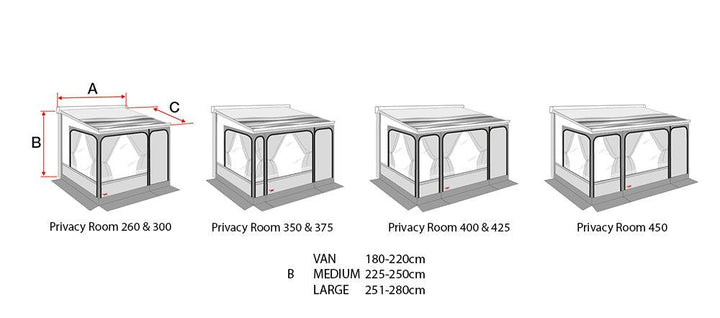

Dimensions (refer to diagram)
Fiamma Privacy Room is designed for Fiamma F45s, F45L, F65L and F80s awnings. It also fits perfectly to the Omnistor 5002, 5003, 4900 and Tristor 2.
* Suitable for the VW T5/T6 short wheelbase 260 Transporter / Multivan / California
** Suitable for the VW T5/T6 long wheelbase 300 Transporter / Multivan / California
Van (180-220cm) |
||||
Description |
Length A |
Height B |
Extension C |
Weight |
260 Van* |
260cm |
180-220cm |
200cm |
23.7kg |
Medium (225-250cm) | ||||
Description |
Length A |
Height B |
Extension C |
Weight |
300 Medium** |
300cm |
225-250cm |
250cm |
24.4kg |
350 Medium |
350cm |
225-250cm |
250cm |
24.9kg |
375 Medium |
375cm |
225-250cm |
250cm |
25.2kg |
400 Medium |
400cm |
225-250cm |
250cm |
25.4kg |
425 Medium |
425cm |
225-250cm |
250cm |
25.6kg |
450 Medium |
450cm |
225-250cm |
250cm |
25.9kg |
500 Medium |
500cm |
225-250cm |
250cm |
26.7kg |
Large (251-280cm) | ||||
Description |
Length A |
Height B |
Extension C |
Weight |
300 Large |
300cm |
251-280cm |
250cm |
24.7kg |
350 Large |
350cm |
251-280cm |
250cm |
25.2kg |
375 Large |
375cm |
251-280cm |
250cm |
25.5kg |
400 Large |
400cm |
251-280cm |
250cm |
25.7kg |
425 Large |
425cm |
225-250cm |
250cm |
26kg |
450 Large |
450cm |
251-280cm |
250cm |
26.2kg |
500 Large |
500cm |
251-280cm |
250cm |
27.2kg |
