Kojack Twin Axle Caravan Jack
Does your caravan have a jacking point? Kojack is the answer.
Custom designed brackets allow you to easily and effortlessly jack & level your caravan without the need for drilling your caravan chassis; which can void your warranty. Kojack fits 99% of caravans.
“Wherever you park your motorhome or caravan you can always have the perfect pitch."

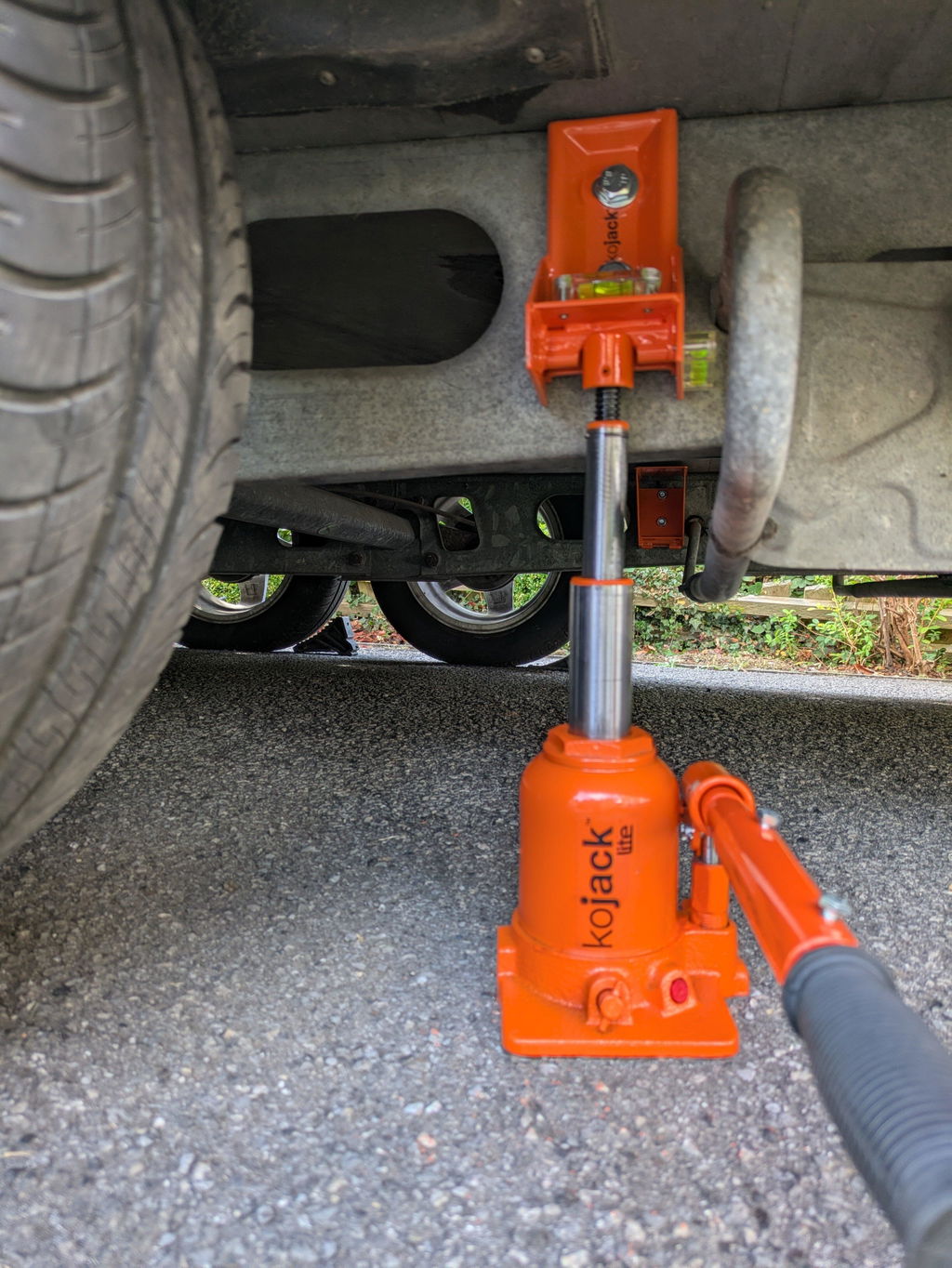

Designed in the Purple Line’s UK innovation centre the 3-Tier hydraulic bottle jack, connects into the dedicated safe anchor points, which are attached to your chassis. The brackets bolt in to pre-existing holes that are standard on most AL-KO & BPW chassis.
Kojack has full TUV CE accreditation and a safe working load (SWL) of 2000kg.
The Kojack set includes a 3-tier hydraulic bottle jack, 2 x chassis brackets with integral spirit levels, 2 x additional support brackets (twin axle version) and all necessary fittings and fixings.
- Total Weight: 8.9kg
- Jack Weight: 4.7kg
- Jack Compressed Height: 170mm
- Jack Extended Height: 390mm
- Jack Width: 140mm
- Jack Depth: 130mm
- L-Bracket Weight: 0.7kg
- L-Bracket Height: 155mm
- L-Bracket Width: 95mm
- L-Bracket Depth: 60mm
- No. of L-Brackets in Box: 2
- V-Bracket Weight: 1.4kg
- V-Bracket Height: 150mm
- V-Bracket Width: 110mm
- V-Bracket Depth: 180mm
- No. of V-Brackets in Box: 2
- Spirit Levels: Yes
- Safe Working Load: 2000kg
- Hole Spacing (From Centre): 55mm
- Total Vehicle Weight: 4000kg
Q. Can I use KOJACK® to lift my caravan so I can work on the underneath it?
A. KOJACK® is a perfect solution to lifting your caravan for quick wheel changes. However, you should not work underneath a caravan whilst it is supported by only a KOJACK®. Once lifted you should always use secure blocks to steady the caravan.
Q. Can I use KOJACK® to level my caravan?
A. KOJACK® is a perfect solution to lifting your caravan. However, you should not use the KOJACK® bottle jack to level your caravan, instead we recommend using KOJACK®Leveller.
