Renogy 100W 12V Flexible Monocrystalline Solar Panel

Lightweight and Ultra-Thin Solar Power

The Renogy 100W Flexible Monocrystalline Solar Panel is designed for installations where weight, thickness and mounting flexibility are important. At approximately 2.4kg and only 3mm thick, it is significantly lighter and slimmer than many conventional rigid solar panels.

Its flexible construction makes it particularly suitable for load-sensitive structures and surfaces where a traditional rigid panel may not be practical.

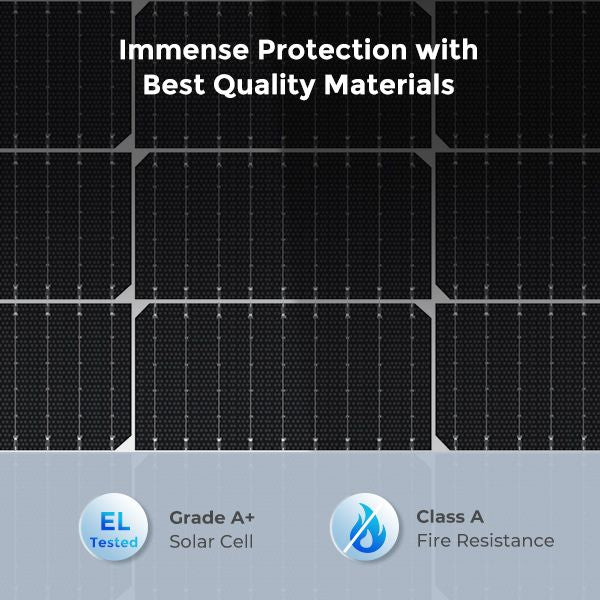

High-Efficiency PERC Monocrystalline Cells

The panel uses PERC monocrystalline solar cells to provide efficient solar power generation from a compact panel design.

With a maximum power output of 100W and a module efficiency of 15.7%, it is designed for 12V off-grid solar systems and can be used as part of a wider solar and battery setup.

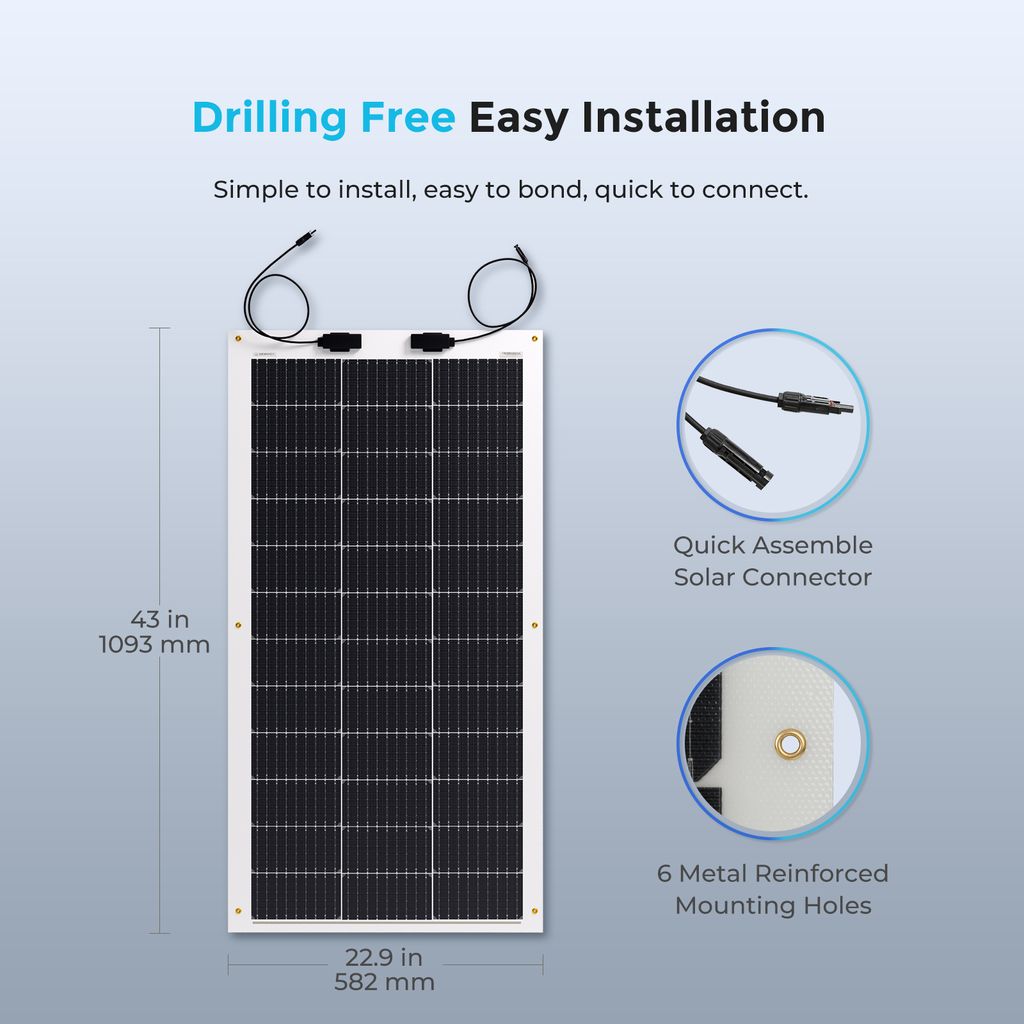

Flexible Design for Uneven and Curved Surfaces

The flexible construction allows the panel to be used on a variety of surfaces and applications where conventional rigid panels are difficult to install.

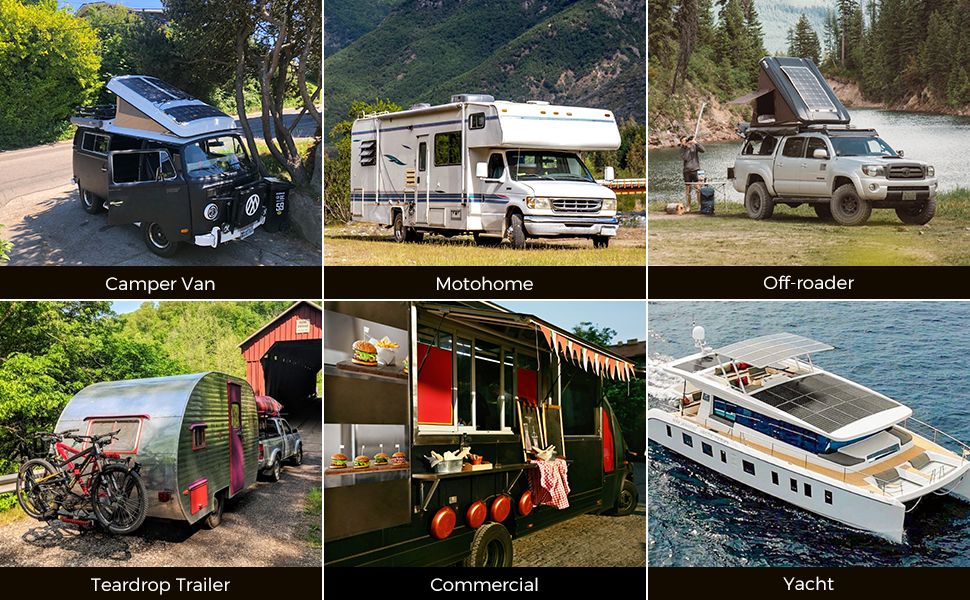

It is primarily designed for off-grid transportation and mobile applications, including:

• Motorhomes and caravans
• Campervans and van conversions
• Boats and marine applications
• Residential rooftops
• Weight-sensitive structures
• Other off-grid solar installations

The ultra-thin laminated construction also allows for a low-profile installation.

Durable Design for Outdoor Use

The panel is designed for outdoor solar applications and features a durable construction intended to provide reliable performance in demanding environments.

The current Renogy specification lists an IP67 rating and an operating temperature range of -40°C to +80°C. The maximum system voltage is 600V DC, with a maximum series fuse rating of 15A.

Stable Solar Performance

The panel provides a maximum output of 100W under standard test conditions, with an optimum operating voltage of 20.7V and optimum operating current of 4.84A.

The open-circuit voltage is 24.4V and the short-circuit current is 5.16A.

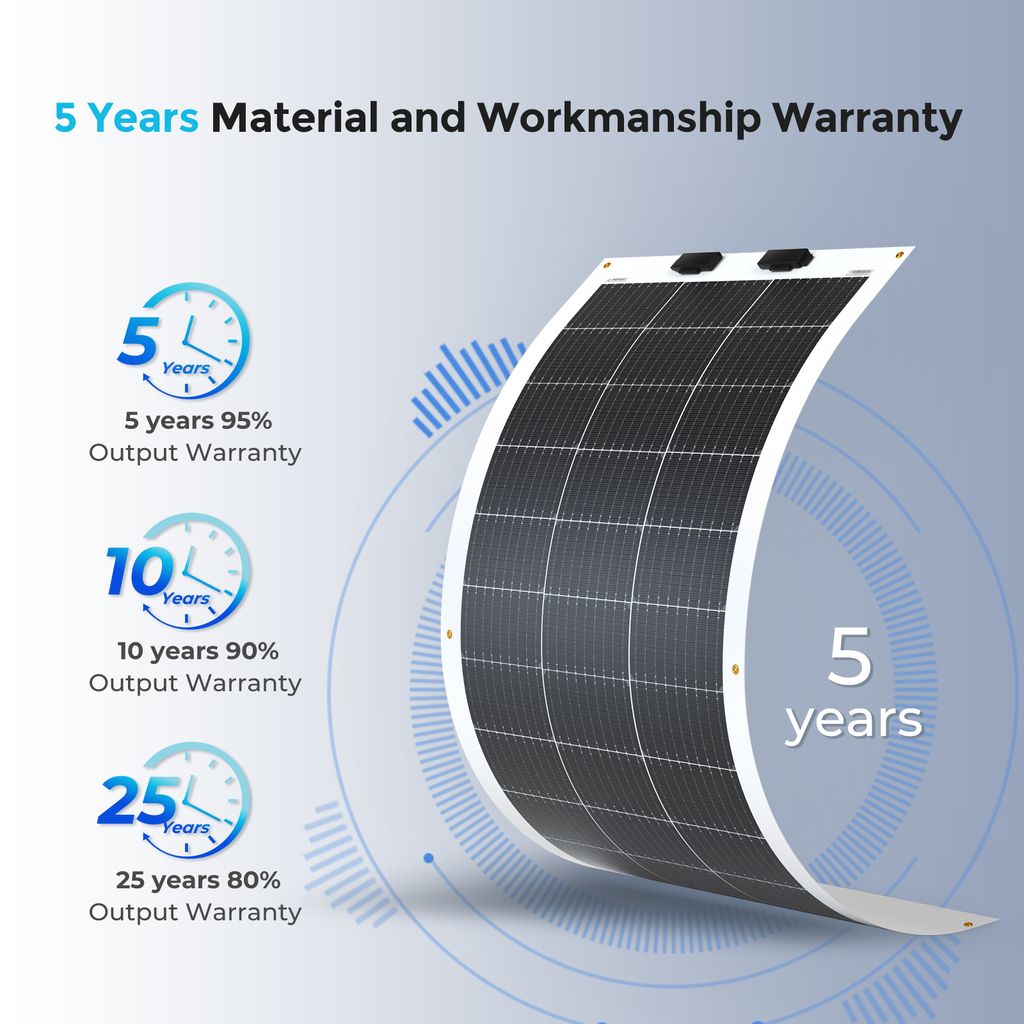

Renogy specifies a 5-year output warranty, with the current UK product information also stating a 5-year material and workmanship warranty.
