Renogy CORE 200W Flexible Monocrystalline Solar Panel

200W Solar Power for Flexible and Off-Grid Applications

The Renogy CORE 200W Flexible Monocrystalline Solar Panel provides a convenient way to add solar power to off-grid, mobile and space-conscious installations. Designed around a 12V system, the panel delivers up to 200W of rated power under Standard Test Conditions (STC), making it suitable for a variety of solar power applications.

Unlike traditional rigid solar panels, the flexible construction allows the panel to be installed on curved or shaped surfaces. This makes it particularly suitable for motorhomes, caravans, RVs, boats, rooftops and other applications where a conventional framed panel may not be practical.

The RSP200DB-72 combines a lightweight construction with a low-profile design, providing a versatile solar solution without the bulk and weight associated with many rigid panels.

Flexible, Ultra-Thin and Lightweight Construction

One of the main advantages of the Renogy CORE 200W panel is its flexible design. The panel can be adapted to curved surfaces, giving installers greater flexibility when working with irregular or limited installation areas.

At just 3mm thick, the panel has an ultra-thin profile that allows it to sit close to the installation surface. Its dimensions are approximately 1605 × 748mm, while the panel weighs approximately 4.9kg.

The lightweight construction makes the panel easier to handle and install, while also making it particularly well suited to mobile applications where keeping additional weight to a minimum is important.

Efficient Monocrystalline Solar Cells

The Renogy CORE 200W uses monocrystalline solar cells and provides a maximum rated power output of 200W ±3% under Standard Test Conditions.

The panel has a stated module efficiency of 16.7%, with an optimum operating voltage of 20.1V and an optimum operating current of 10.02A. Its open-circuit voltage is 23.9V, while the short-circuit current is 10.74A.

The panel contains 72 monocrystalline cells, arranged in an 18 × 4 configuration. This provides a compact solar panel design while maintaining the rated 200W output.

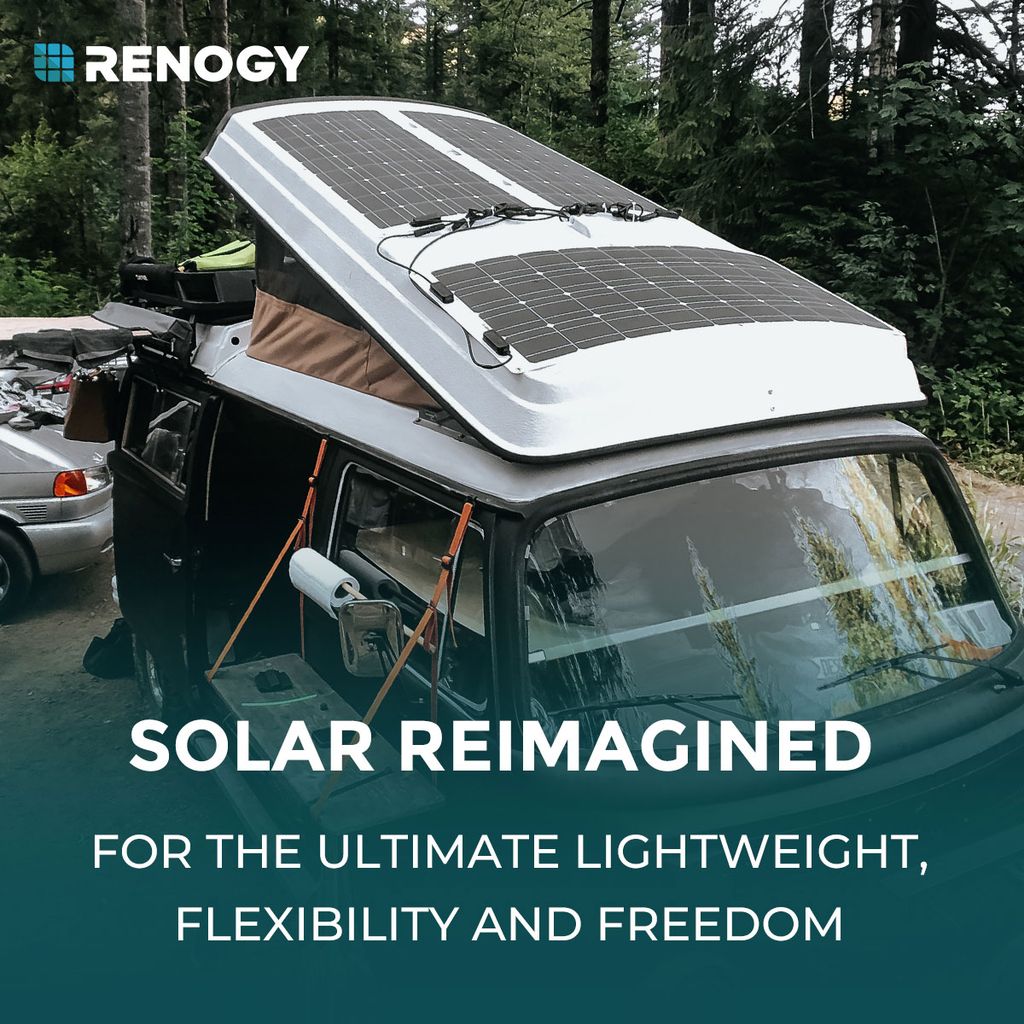

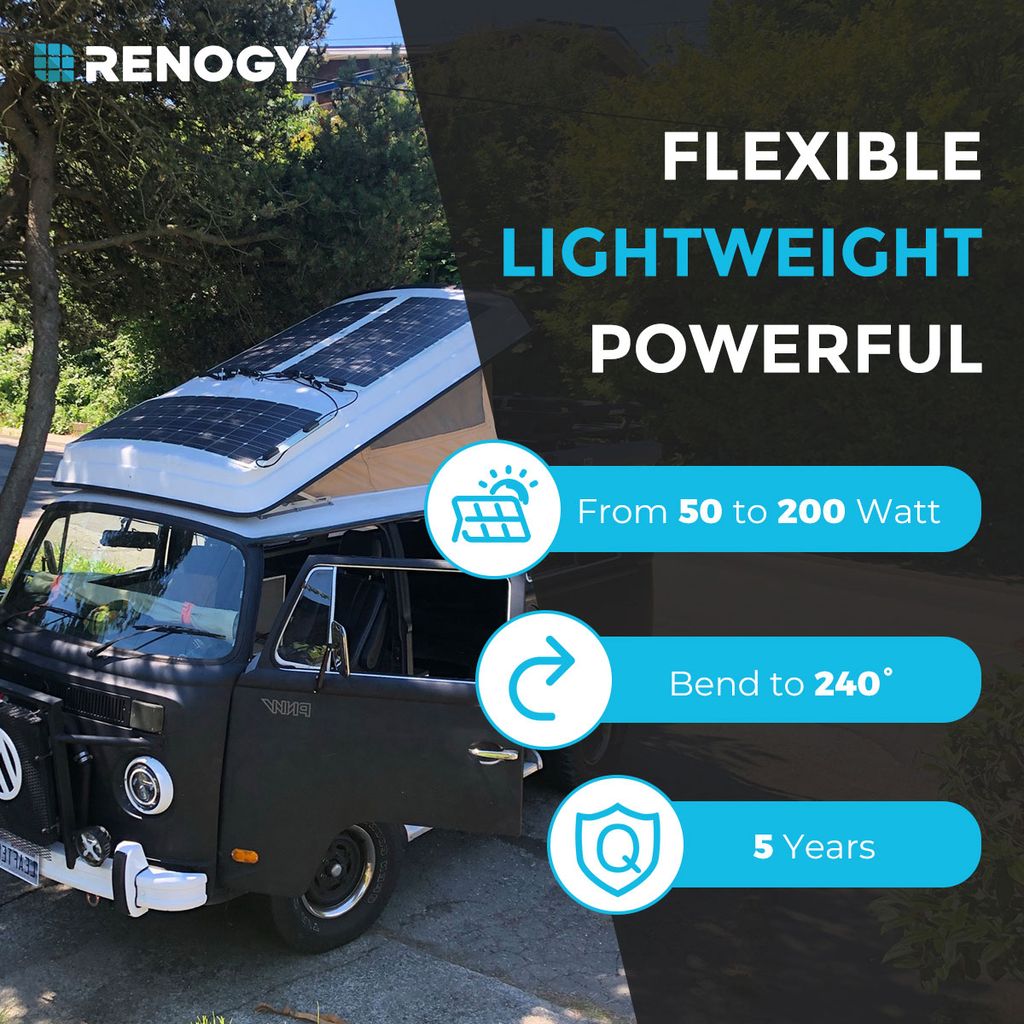

Ideal for Motorhomes, Boats and Off-Grid Systems

The flexible design makes the Renogy CORE 200W particularly useful for applications where a standard rigid panel may be difficult to install.

Potential applications include:

• Motorhomes and caravans
• RVs and campervans
• Boats and marine installations
• Rooftops
• Curved or shaped surfaces
• Off-grid solar systems
• Other mobile and space-conscious solar installations

Its low-profile construction and lightweight design make it a practical choice where installation space, surface shape or overall system weight are important considerations.

Designed for Outdoor Use

The panel is designed for outdoor solar applications and incorporates features intended to support operation in a wide range of environmental conditions.

The Renogy specification gives an operating temperature range of -40°C to +80°C. The junction box has an IP67 rating, while the panel incorporates two diodes.

The maximum system voltage is rated at 600V DC, with a maximum series fuse rating of 15A. The panel also features a 12 AWG output cable measuring approximately 700mm, providing a convenient connection point for integration into a compatible solar installation.

The panel has a Class A fire rating and is designed for use as part of an appropriately configured solar power system.
