Renogy 200W N-Type Portable Solar Panel Blanket

Powerful 200W Solar Generation in a Portable Design

The Renogy 200W N-Type Portable Solar Panel Blanket provides a convenient way to generate renewable electricity without the weight and installation requirements of a traditional rigid solar panel. Designed for portable and temporary solar applications, the blanket can be unfolded whenever additional solar power is required and packed away when travelling or storing equipment.

With a rated maximum power output of 200W under Standard Test Conditions (STC), the solar blanket provides a useful source of renewable energy for compatible portable power stations and battery systems. Its flexible deployment options make it particularly suitable for customers who need solar power while travelling, camping or spending time away from mains electricity.

Unlike a permanently mounted solar panel, the blanket can be positioned throughout the day to make better use of available sunlight. It can be laid flat on the ground, positioned against a vehicle or camper, mounted against a suitable surface or hung using the supplied straps.

High-Performance N-Type Solar Cells

The 200W Solar Panel Blanket uses N-Type solar cell technology, designed to provide efficient solar energy generation in a lightweight portable format. Renogy describes the N-Type cells as offering high performance and efficiency while maintaining the compact, portable characteristics of the blanket.

The panel has a maximum rated output of 200W, with an optimum operating voltage of 16.8V and optimum operating current of 11.9A. Its open-circuit voltage is 19.6V and short-circuit current is 13.1A.

These electrical characteristics make the blanket suitable for connection to compatible portable power stations and, when used with an appropriate solar charge controller, suitable battery systems. Always check the input voltage and current requirements of the equipment being connected before use.

Solar output will vary according to sunlight intensity, panel positioning, temperature, weather conditions, shading and other environmental factors. The 200W rating represents the panel's rated output under Standard Test Conditions rather than a guaranteed continuous real-world output.

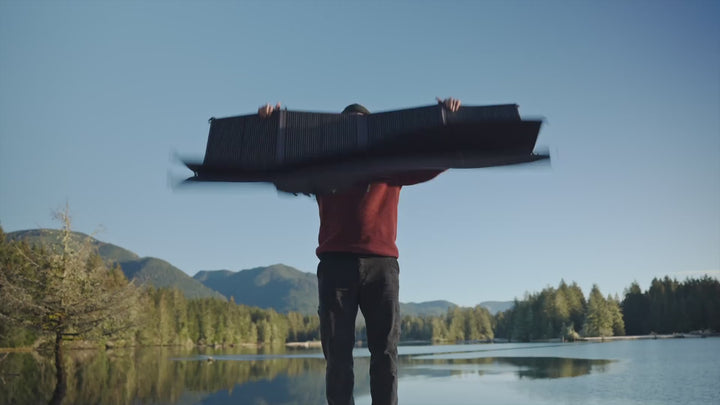

Folds Down for Easy Transport & Storage

One of the main advantages of the Renogy 200W Solar Blanket is its portable folding design. When unfolded, the blanket measures approximately 1560 × 810 × 38mm, providing a large solar collection area while still being capable of folding down to approximately 410 × 390 × 78mm for transportation and storage.

At approximately 4kg, the blanket is designed to be considerably easier to transport and deploy than many conventional rigid solar panels. Once folded, its compact dimensions make it suitable for storage in vehicle luggage areas, motorhomes, campervans, caravans and other spaces where storage room is limited.

A removable and adjustable shoulder strap is supplied, allowing the folded blanket to be carried more easily. When not required, the strap can be stored in the product's zippered outer pocket.

This combination of low weight, folding construction and carry functionality makes the blanket particularly useful for customers who want solar power without permanently installing a panel on their vehicle or property.

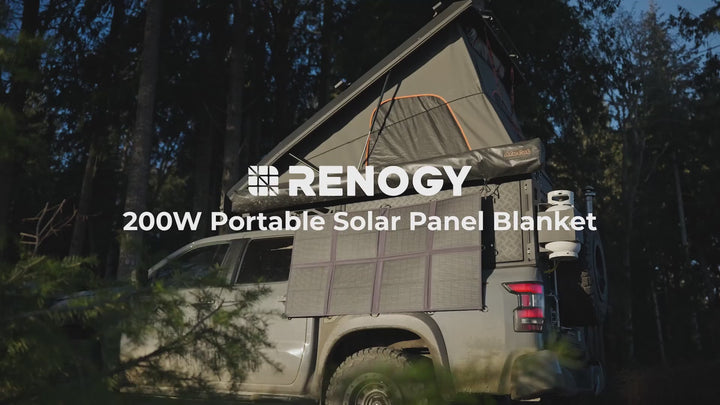

Flexible Installation for Camping, Travel & Off-Grid Use

The portable design allows the Renogy 200W Solar Blanket to be positioned according to the available sunlight and the requirements of the installation. It can be laid on the ground, positioned on a vehicle, placed against a suitable surface or hung using an appropriate support point.

This flexibility is particularly useful for motorhomes, campervans, caravans, boats, camping trips and other temporary off-grid applications. It can also provide additional solar generation alongside an existing solar installation where the connected charge controller or power station is compatible with the panel's electrical specifications.

The blanket can be used as a portable solar source rather than being permanently fixed in one position. This allows it to be packed away when travelling and deployed when additional energy is required.

Renogy also describes the blanket as suitable for use with portable power stations from other manufacturers, provided the appropriate adapter cable is used and the power station's solar input specifications are compatible.

Direct USB Charging & Power Station Compatibility

The 200W model includes integrated USB charging functionality, providing additional flexibility when charging smaller electronic devices directly from the solar blanket.

It features one USB-C port rated up to 45W and two USB-A ports rated up to 18W. Renogy specifically notes that direct USB charging is supported on the 200W model.

The solar blanket can also be connected to compatible portable power stations, allowing the solar energy generated by the blanket to be stored for later use. This makes it possible to use solar power for a wider range of equipment rather than being limited to devices connected directly to the USB outputs.

For battery charging applications, Renogy recommends using an appropriate MPPT solar charge controller together with the necessary adapter and extension cables. When connecting the blanket to a portable power station or charge controller, the open-circuit voltage of the solar panel must remain within the equipment's permitted solar input voltage range.

Durable, Portable Construction & Key Specifications

Although designed for portability, the Renogy 200W Solar Blanket is built for outdoor use and is specified with an IP65 rating. This provides protection against dust ingress and water jets when the product is used within its specified conditions.

The operating temperature range is specified as -10°C to 65°C. As with all portable solar equipment, care should be taken to position the blanket securely and avoid unnecessary damage to the panels, cables or connectors during use.

The supplied carry handle and shoulder straps make transportation straightforward, while the folding construction allows the solar blanket to be stored compactly between uses.

Installation & Compatibility

The Renogy 200W Solar Blanket can be used with compatible portable power stations and battery systems. When connecting directly to a battery, an appropriate solar charge controller is required to regulate the solar power supplied to the battery.

The blanket can also be connected to compatible power stations from other manufacturers using the appropriate adapter cable. Before connecting, customers should check the power station's maximum solar input voltage, current and power specifications and ensure they are compatible with the panel.

For battery installations, Renogy recommends pairing the blanket with an MPPT charge controller. The appropriate adapter and extension cables can be used where additional cable distance is required.

Multiple 200W blankets can also be incorporated into a larger solar array where the connected charge controller or power station supports the resulting electrical characteristics. When connecting panels in series, the system voltage increases while current remains approximately that of the individual panels; when connecting in parallel, the current increases while voltage remains approximately the same. The maximum input specifications of the connected controller or power station must always be observed.

Please note: Solar output varies depending on sunlight intensity, weather, temperature, orientation, shading and other environmental conditions. The 200W rating is based on Standard Test Conditions. The blanket should only be connected to equipment with compatible electrical input specifications. When charging batteries, an appropriate solar charge controller must be used, and all connections should be made in accordance with the manufacturer's instructions.
